Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Regular price
£3,685.28 GBP
Regular price
£5,944.00 GBP
Sale price
£3,685.28 GBP
Shipping calculated at checkout.

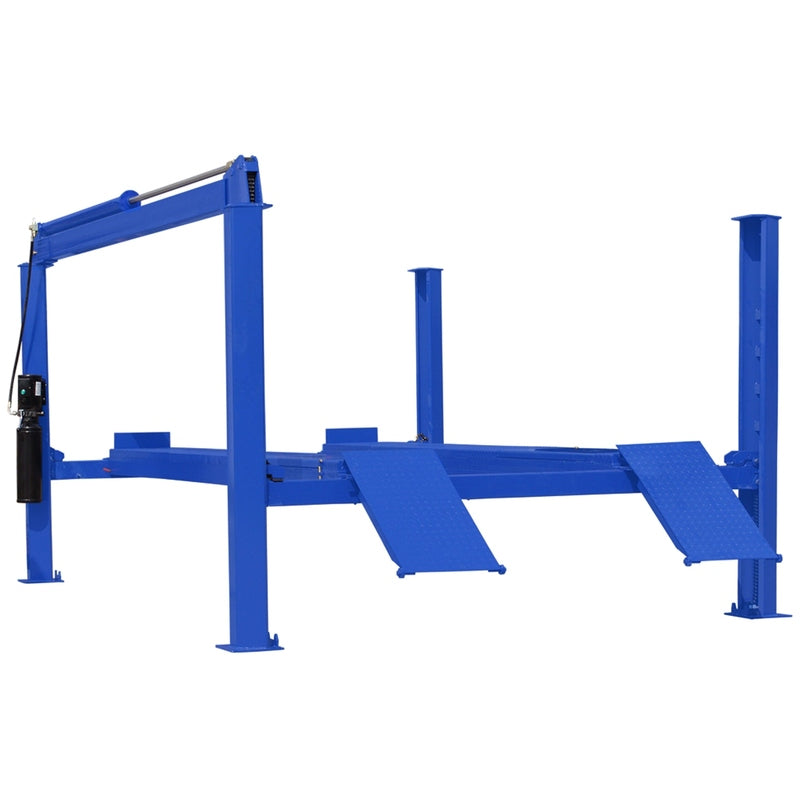

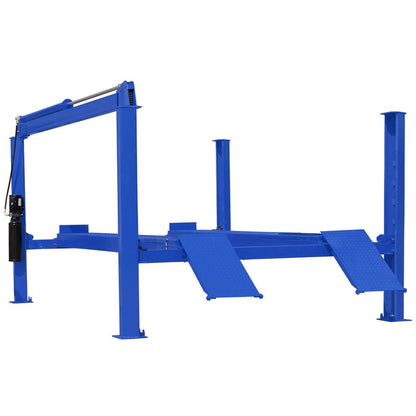

Tuxedo 14,000 lb Four Post Lift - Chain Driven
These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.
Features
- 14,000 lbs Capacity

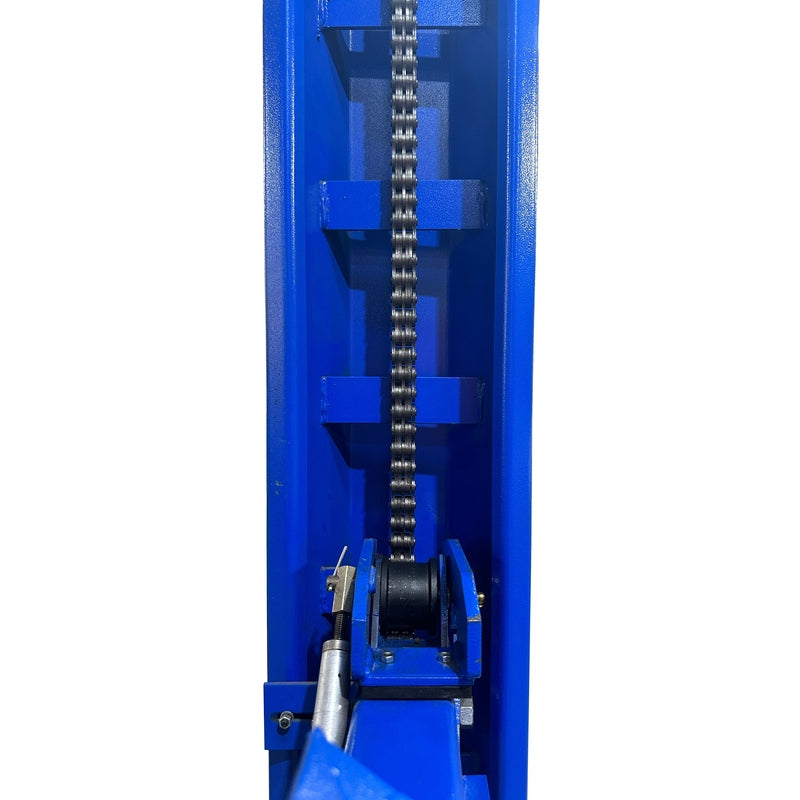

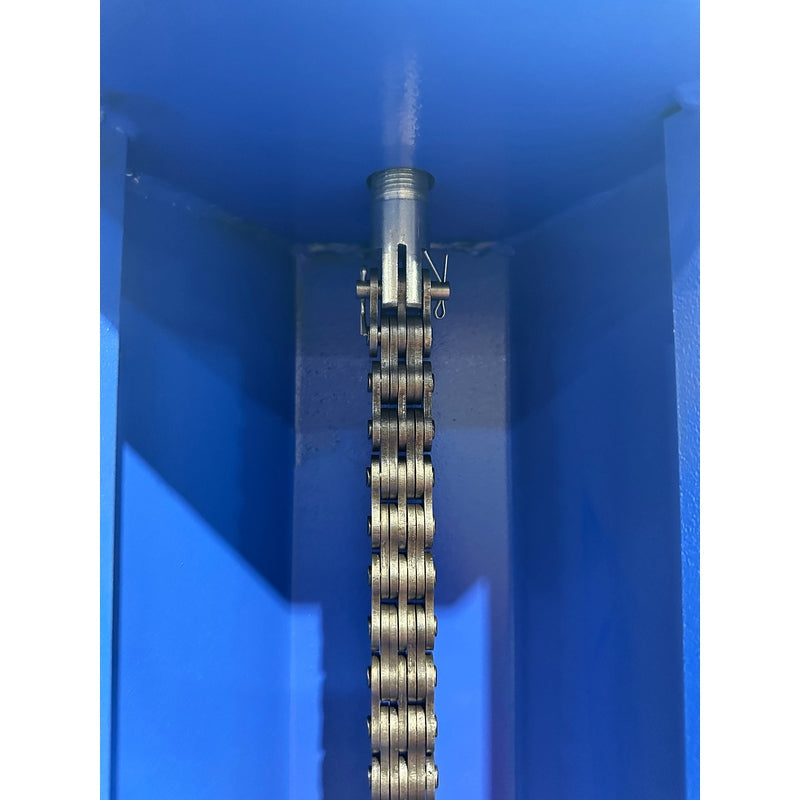

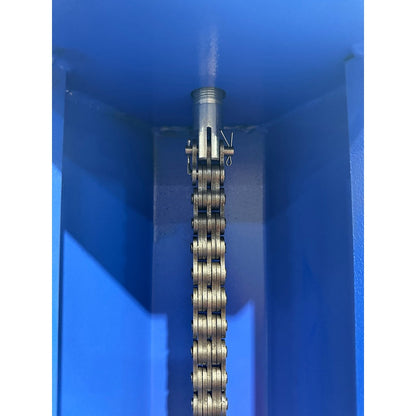

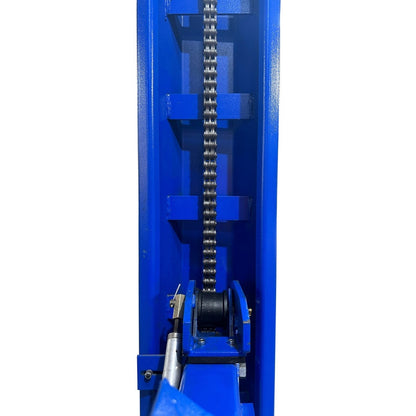

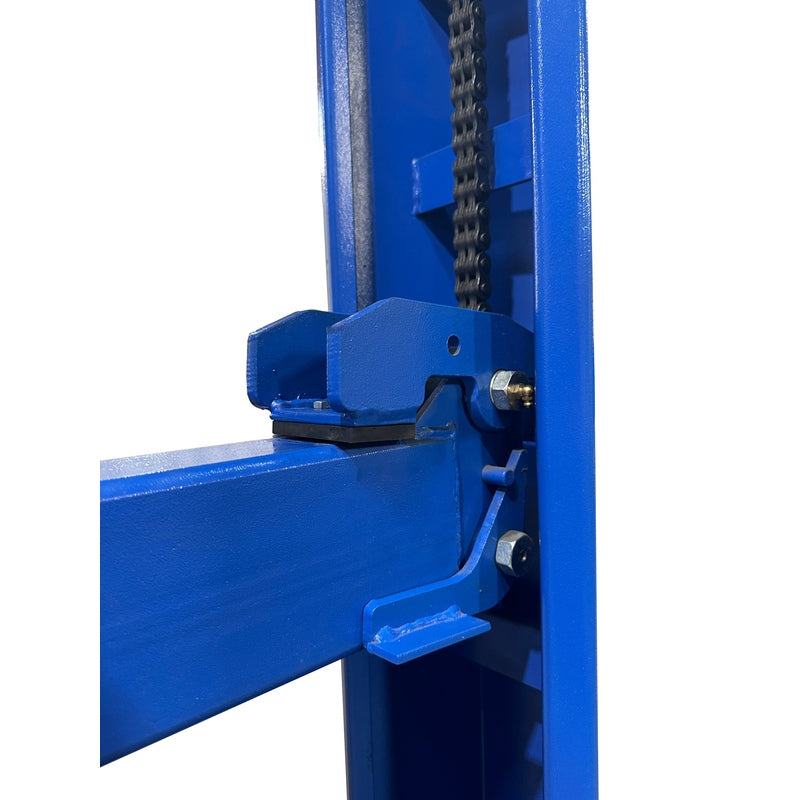

- Chain Driven
- 182 max wheelbase

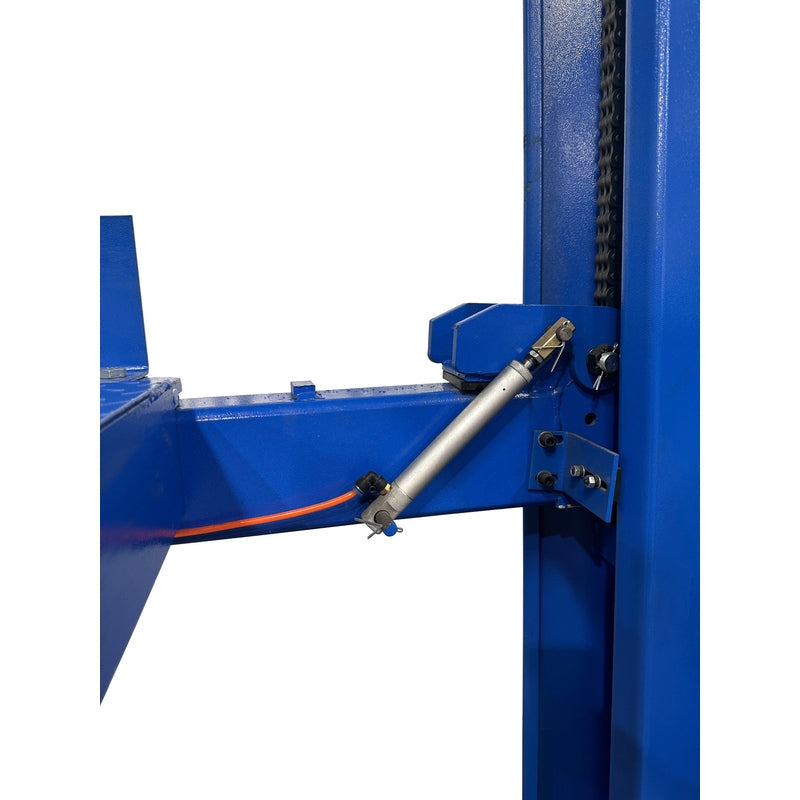

- Single Point Pneumatic Lock Release
- Powder Coat Finish

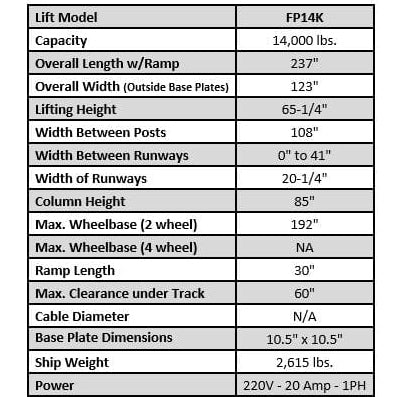

Specifications
| Capacity | 14,000 lbs. |
| Overall Length w/Ramp | 237" |
| Overall Width (Without Power Unit) | 123" |
| Overall Width (WithPower Unit) | 129" |
| Overall Height | 99" |
| Max Rise Height | 65 - 1/4" |
| MinHeight | 7 - 1/2" |
| Width Between Posts | 108" |
| LengthBetween Posts | 187" |
| Width Between Runways | 41" |
| Width of Runways | 20" |
| Max. Wheel Base | 182" |

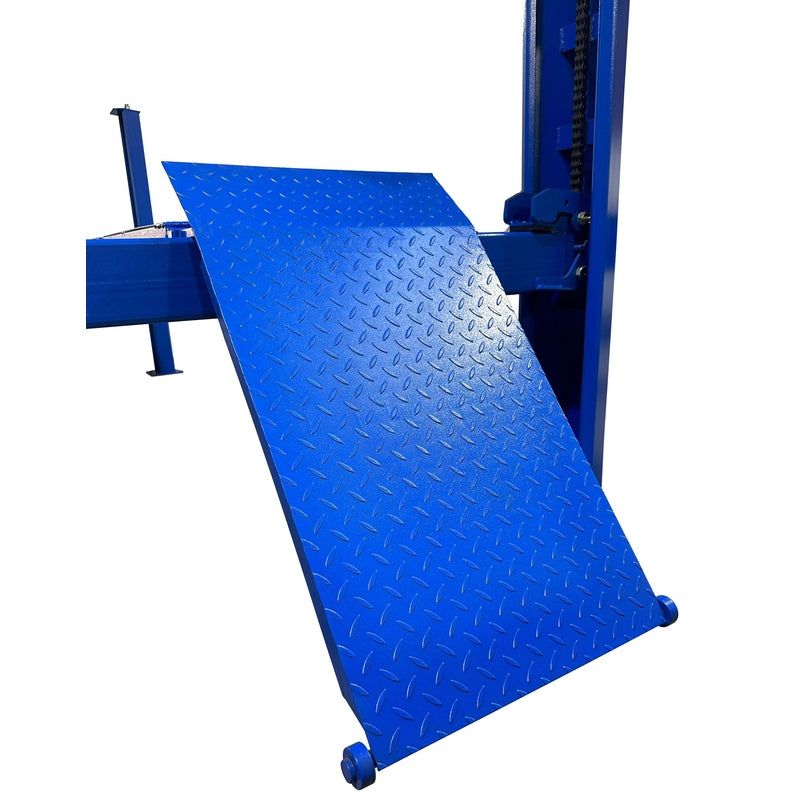

| Ramp Length | 30" |
| Max. Clearance Under Runway | 60" |
| Drive-Thru Clearance | 99" |

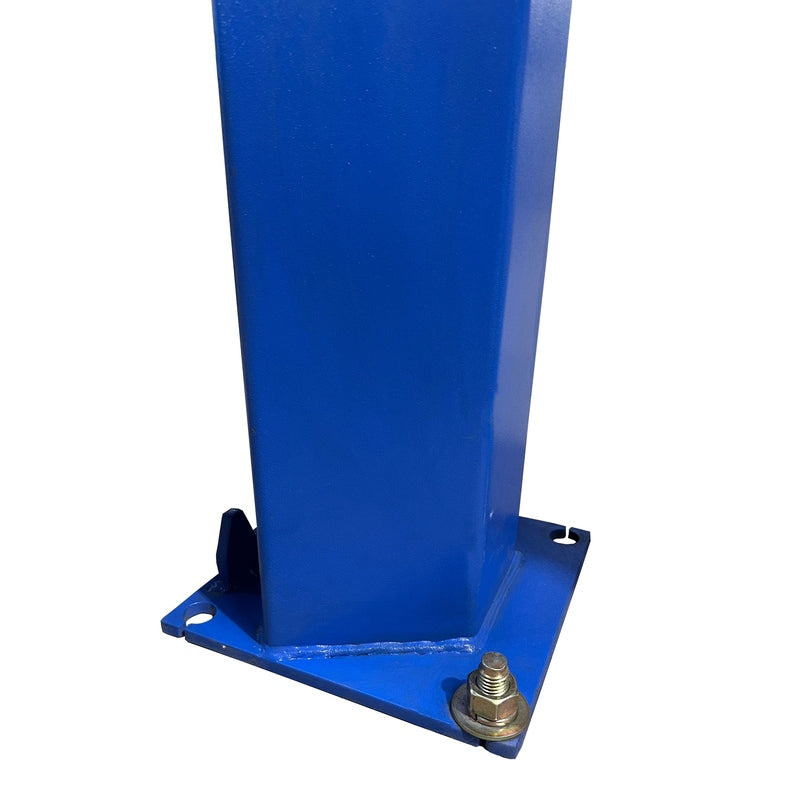

| Base Plate | 10-1/2" x 10-1/2" |

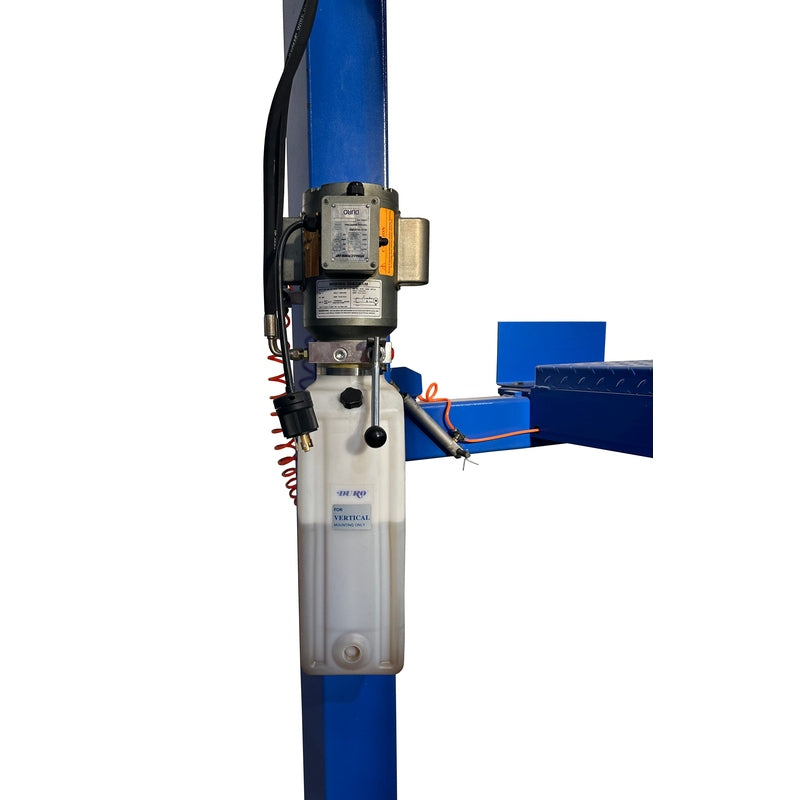

| Power Requirement | 220V-20 Amp |
| Ship Weight | 2,615 lbs. |
| Min Bay Size | 15x 24 |
Recommended RAJ-8K & Tuxedo Lift Combo
Resources
For more detailed information and guidance, you can download the following:
