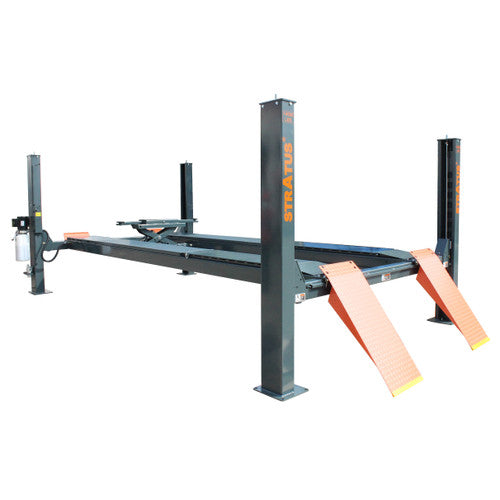

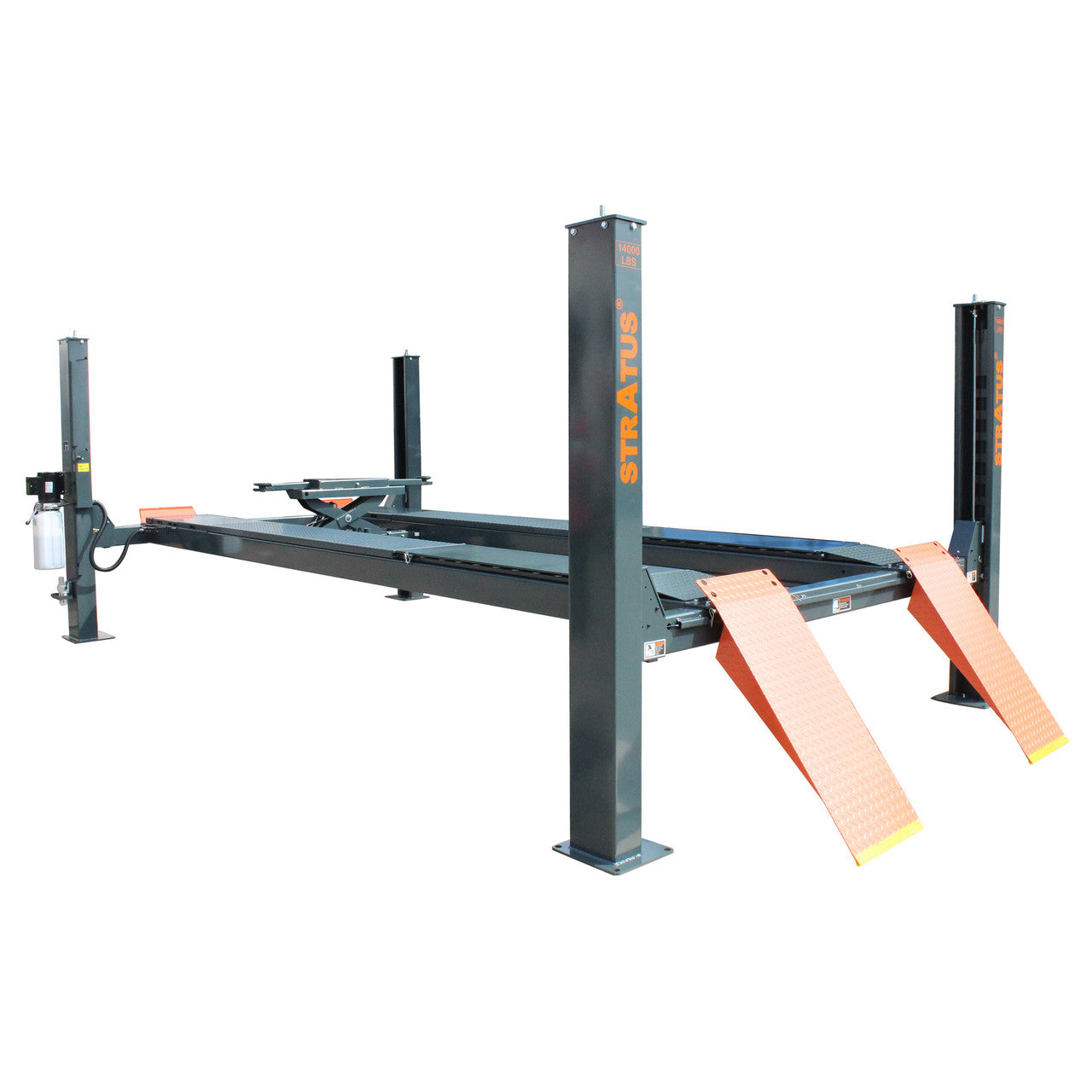

Stratus SAE-414A 4 Post 14,000 LBS Capacity Pneumatic Safety Lock Release Alignment Car Lift
Stratus SAE-414A 4 Post 14,000 LBS Capacity Pneumatic Safety Lock Release Alignment Car Lift
Stratus Auto Equipment is synonymous with quality and strength. Our 4 Post 14,000 lbs Capacity Pneumatic Safety Lock Release Car Lift SAE-414a is a testament to that! Say hello to a hefty 14,000 lbs 4 post lift, a hot commodity for car enthusiasts, and professionals alike. The pneumatic safety lock release offers seamless operation and ensures safety is at the forefront without compromise. Plug into the Stratus ecosystem and experience the ultimate in vehicle maintenance!
Important Notes
- A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
- Sales tax will be automatically waived for out of Texas Buyers
- Lift will be shipped with free delivery to Commercial Address, Local Installer or Truck Terminal. Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
Product Features

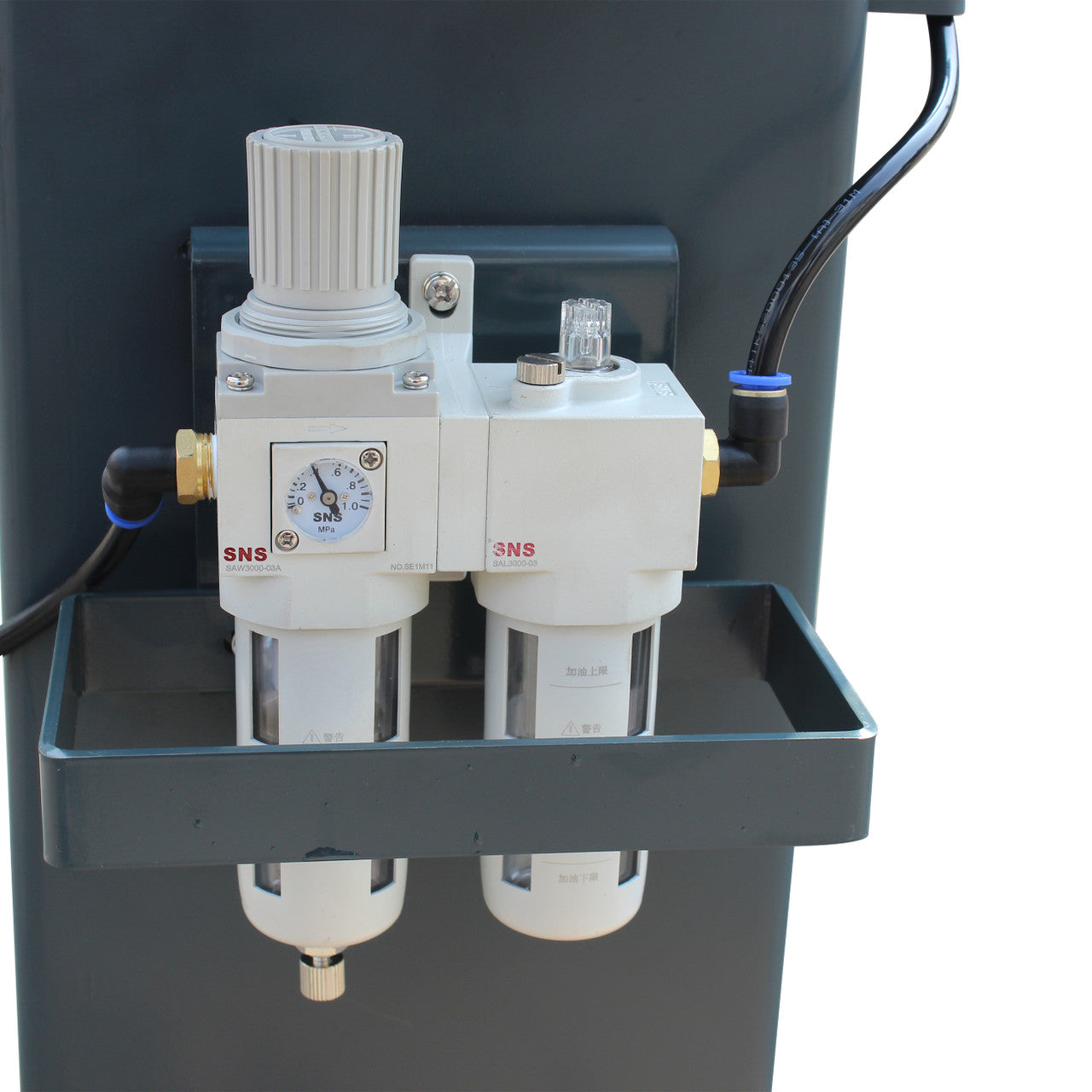

- Pneumatic safety lock release alignment lift
- Max lifting height limiter switch to ensure the cylinders work within the stroke

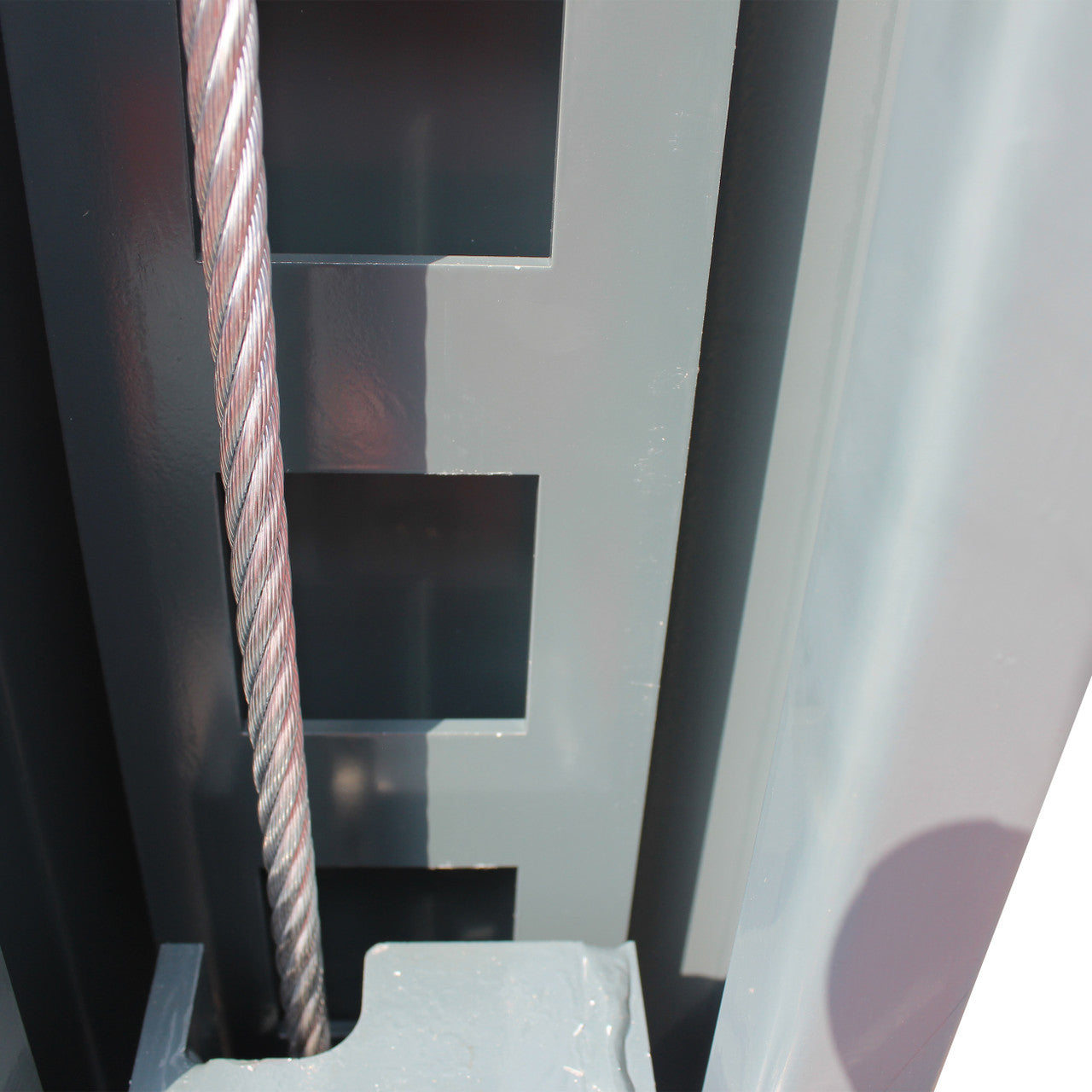

- Dual safety device design: Second safety device will be automatically locked while primary safety locks are out of operation.
- Optional rolling bridge jack
- Optional turntable plate
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Optional Add-On Accessories (Sold Separately)
- Rolling bridge jack
- Turntable plate
Product Specifications
Capacity | 14,000 LBS |
Rise | Min lifting height 9 1/2” (241 MM) |
Max lifting height 75 3/8” (1915 MM) | |
Lifting Time ~50 SEC | |
Clearance Height 65 7/8” (1674 MM) | |
Outside Dimensions | Overall Height 91 ½” (2324 MM) |
Overall Width 144 9/16” (3672 MM) | |
Overall Length w/ ramps 277 3/16” (7040 MM) | |
Overall Length w/o ramps 237 3/8” (6030 MM) | |
Inside Dimensions | Width columns 107 9/16” (2732 MM) |
Drive Thru 82 1/2” – 86 7/16” (2096 MM – 2196 MM) | |
Runways | Runway width 20” (508 MM) |
Runway Length 277 3/16” (5770 MM) | |
Between Runways 42 1/2” – 46 7/16” (1080 MM – 1180 MM) | |

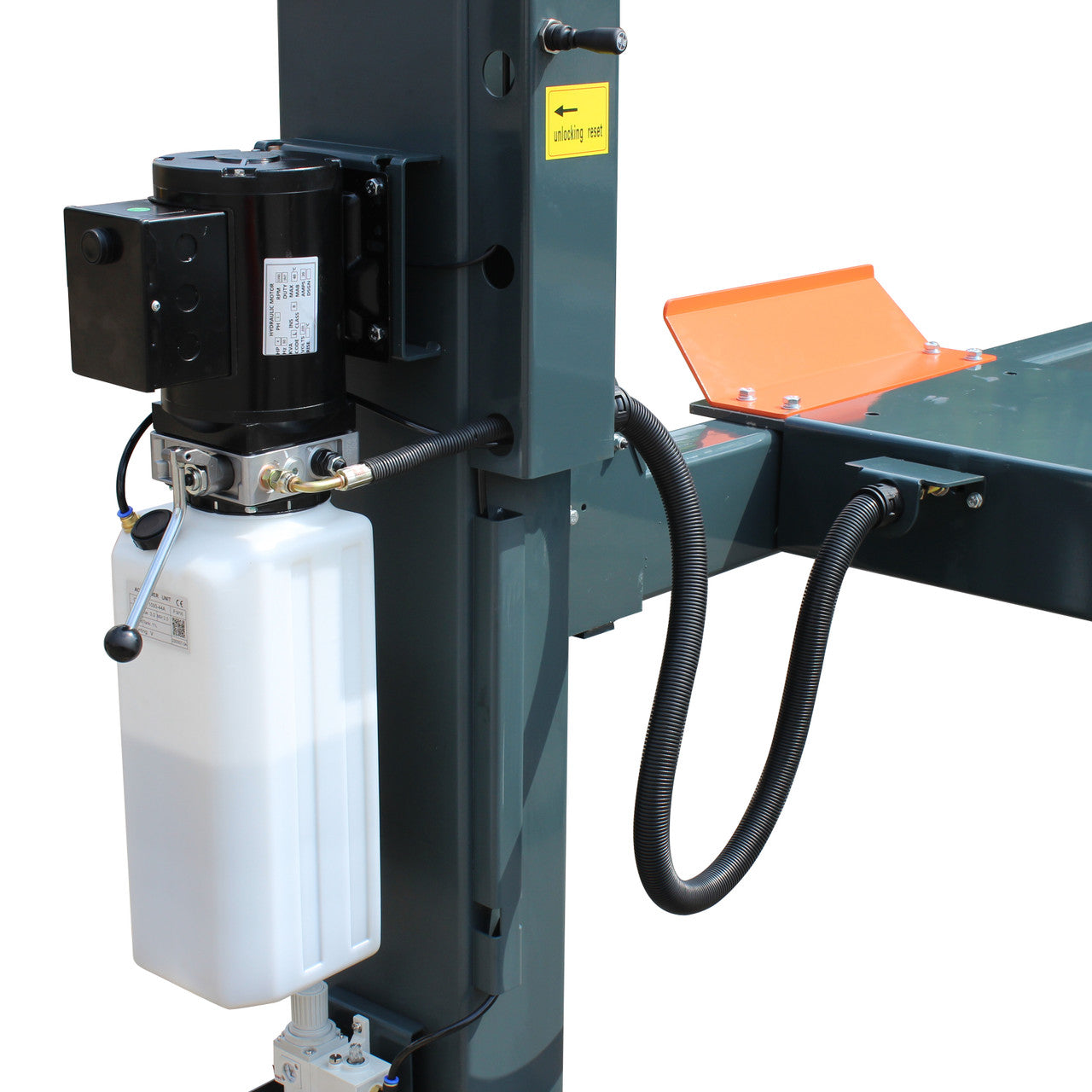

Power Unit | Motor 4 HP, 220V, 60 HZ, 1ph |
Oil AW32 or AW46 | |
Breaker 30A | |
Shipping Weight | 3,097 LBS |
Dimension | 236” L * 23” W * 36” H |
