iDEAL TP12KSC-DX 12,000 lb Two Post Lift -- Direct Drive ALI Certified W/PU

iDEAL TP12KSC-DX 12,000 lb Two Post Lift -- Direct Drive ALI Certified W/PU

Regular price £4,110.60 GBP
Regular price £6,630.00 GBP Sale price £4,110.60 GBP
Sale Sold out
Shipping calculated at checkout.

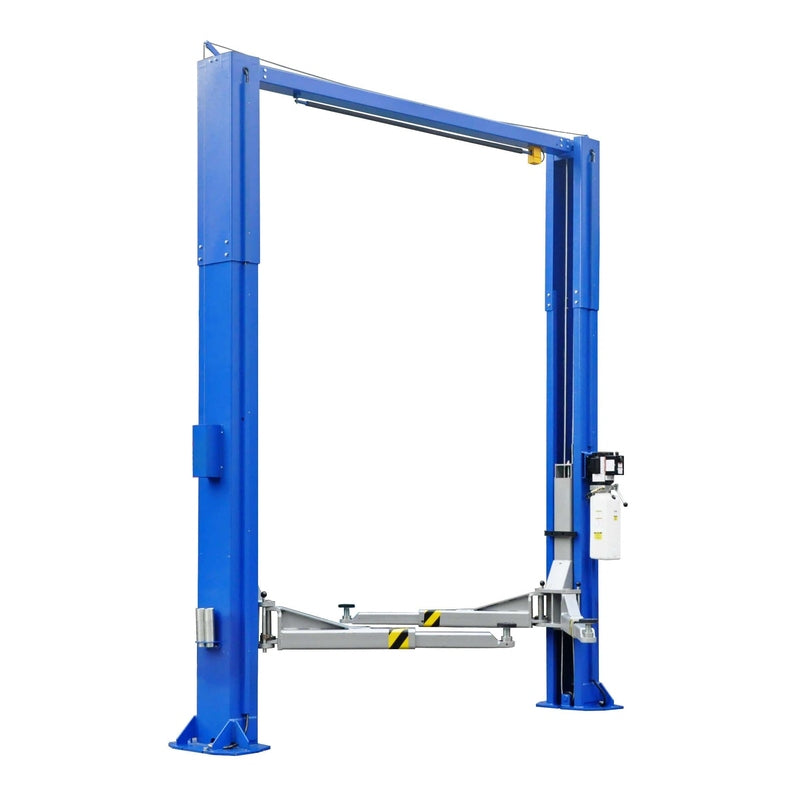

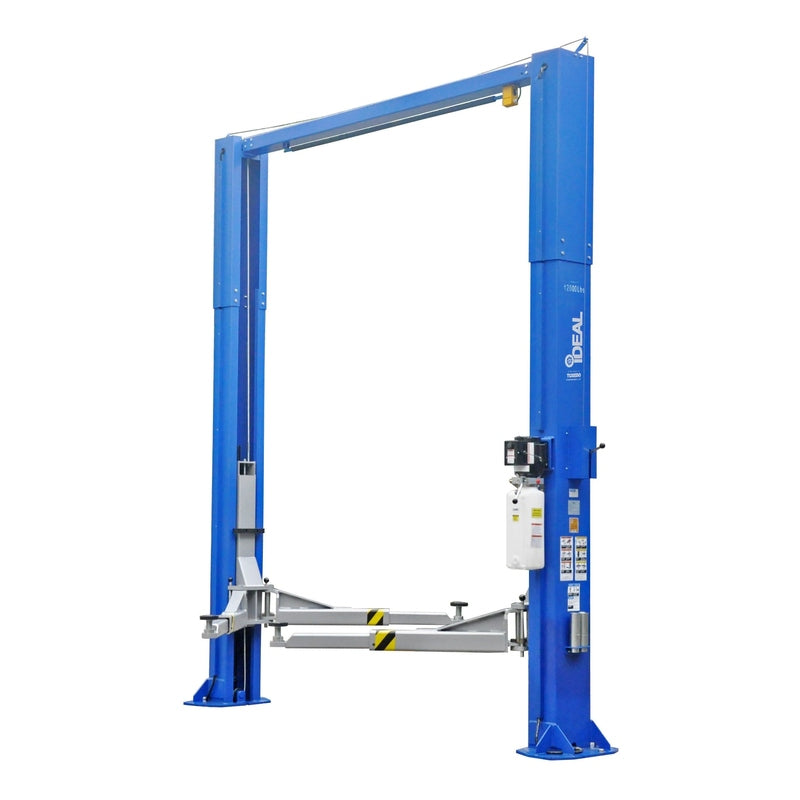

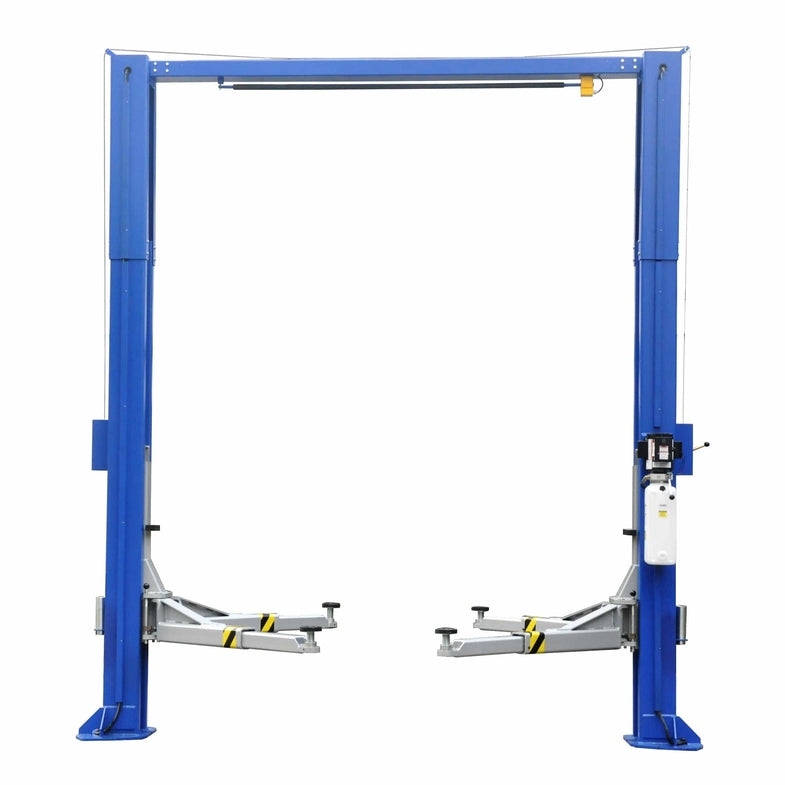

iDEAL TP12KSC-DX Heavy Duty 2 Post Clear Floor Lift

The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a
premium symmetric design clear floor vehicle lift with the latest design features, now
including low-profile swing arms, adjustable swivel pads & single point cable lock
release.

The symmetric arm configuration provides stable lifting, making it perfect for
super duty & light duty trucks along with most passenger cars. The direct push drive
cylinders, hose & door guards, and automatic arm restraints complete the package for a premium, high-quality lift, all at a great value!

Features

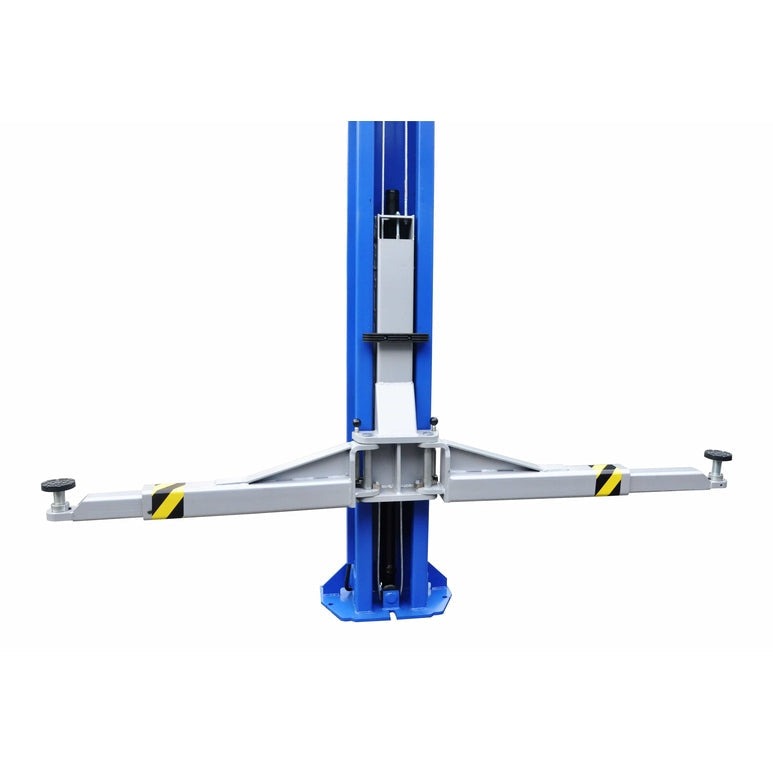

  • New Low Profile Swing Arm Design

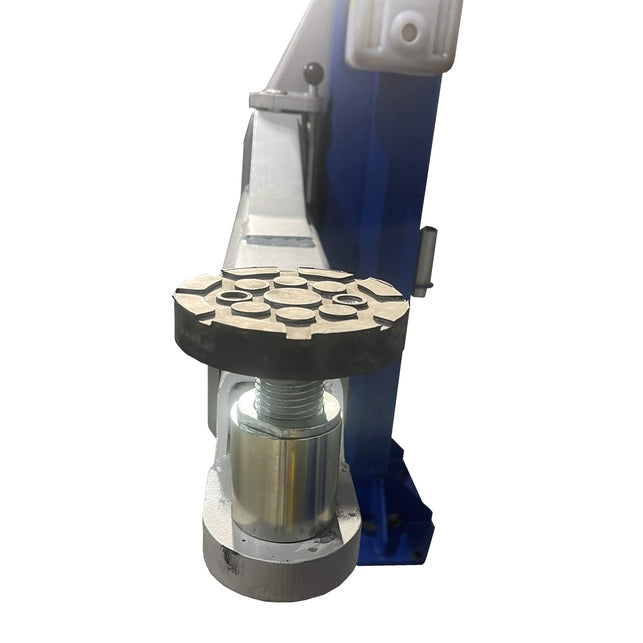

  • New Adjustable Height Swivel Pads

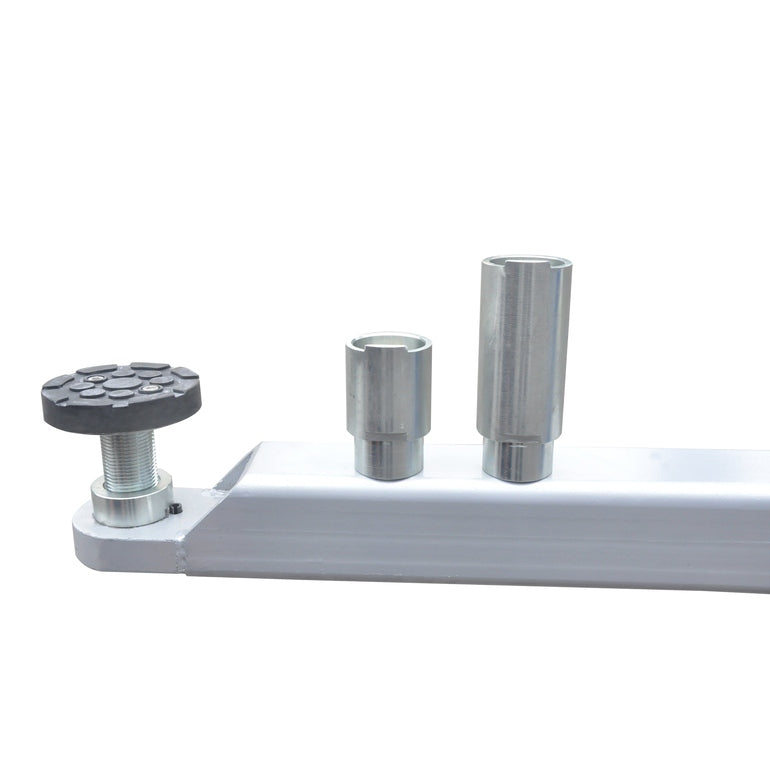

  • New 2.6" & 5" Stackable Height Adaptors

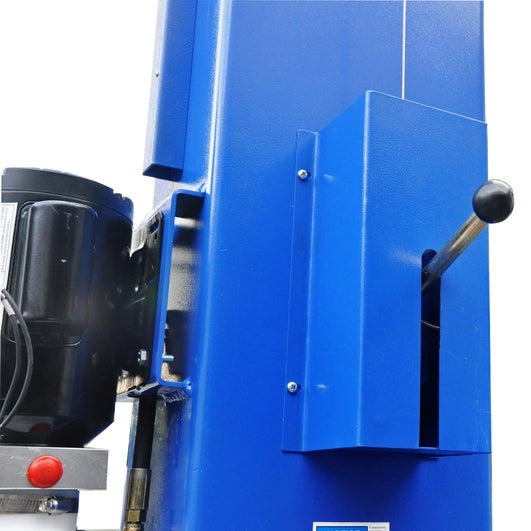

  • New Single Point Cable Lock Release

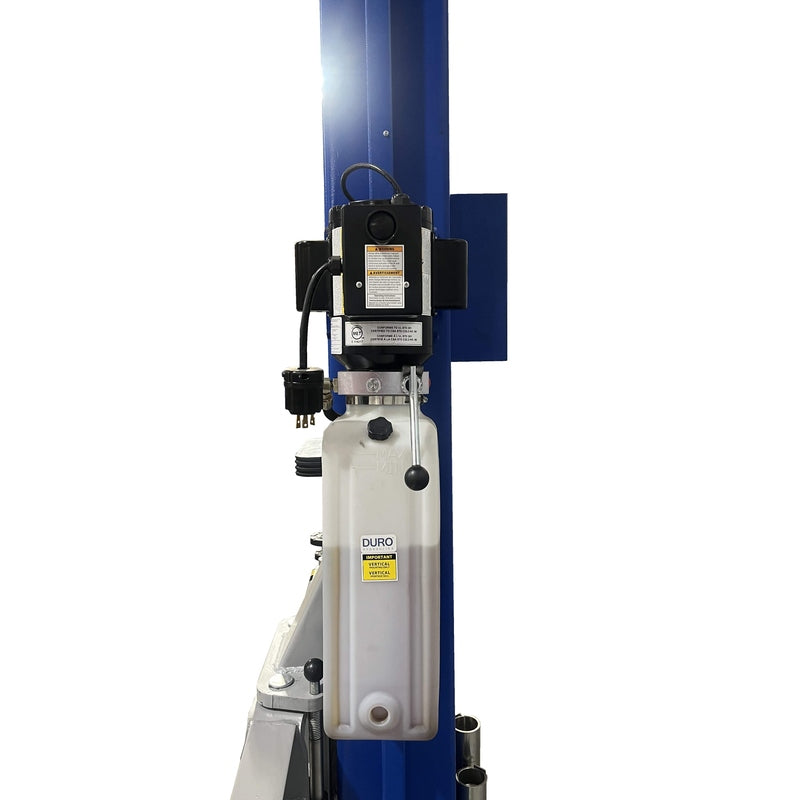

  • New Met UL/CSA Certified Duro Power Unit

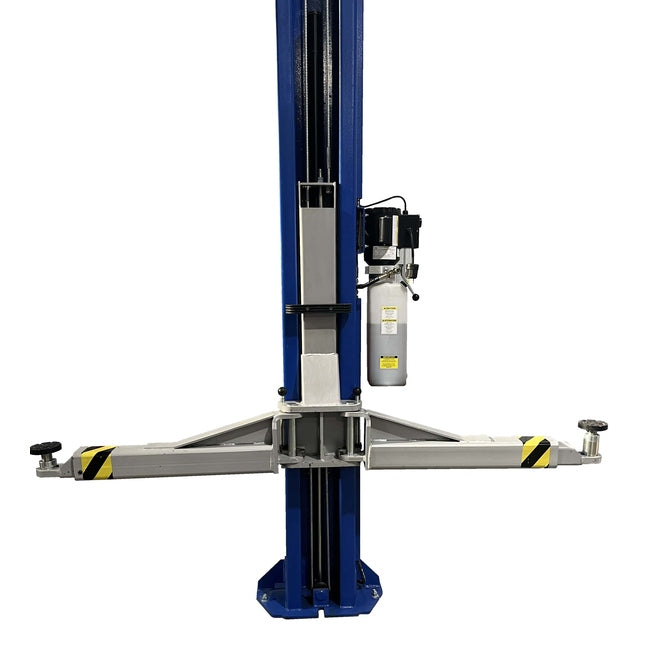

  • Symmetric Lift Arms
  • Automatic Arm Restraints

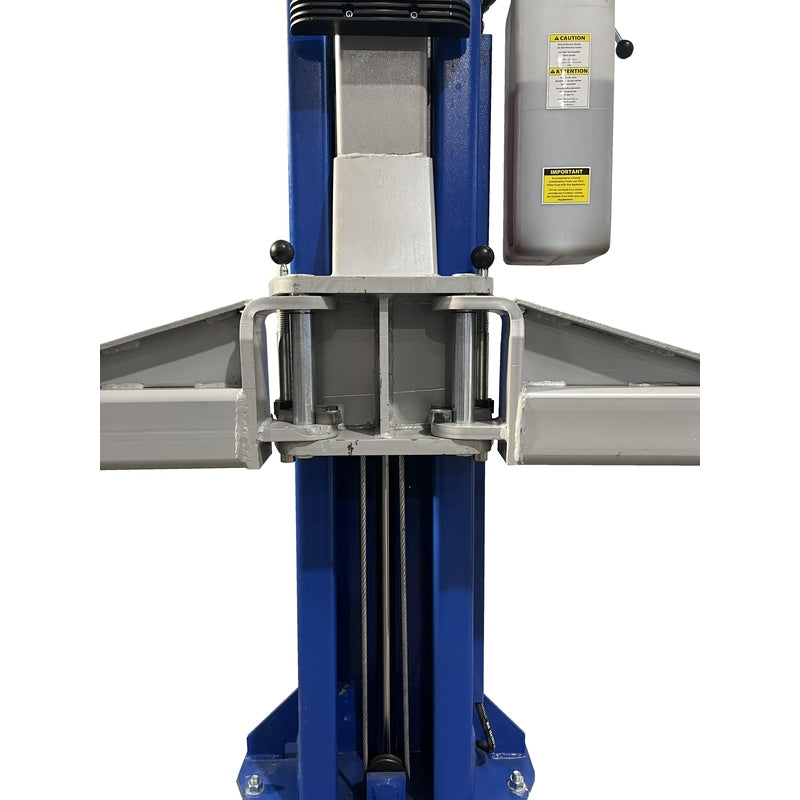

  • Direct Push Drive Cylinders

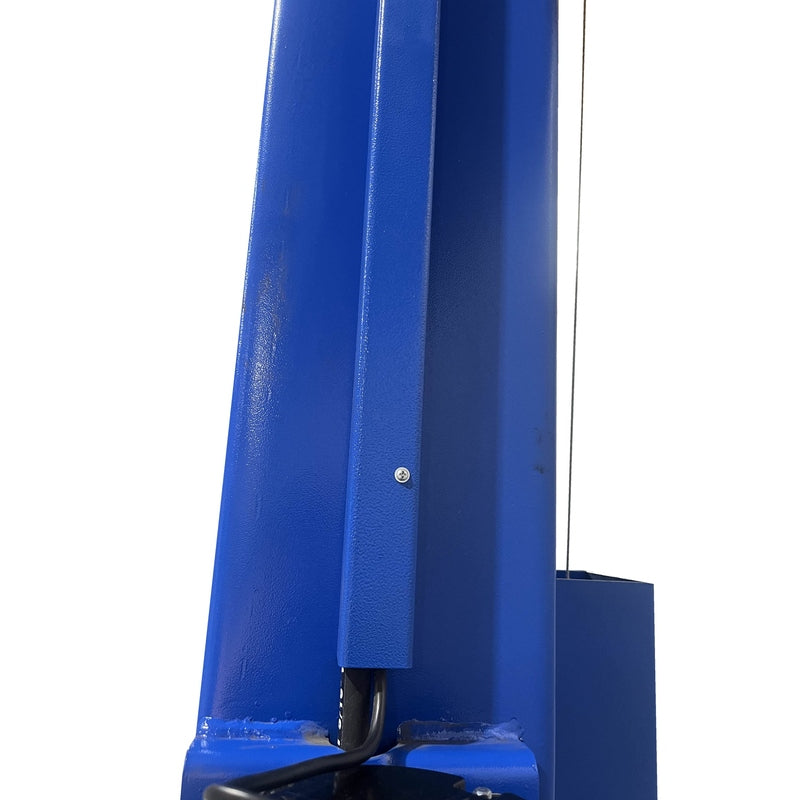

  • External Hose Guards
  • Rubber Door Guards
  • Durable Powder-Coat Finish
  • Ali Certified
  • Limited Warranty Policy (5 Yr Structural / 1 Yr Parts)

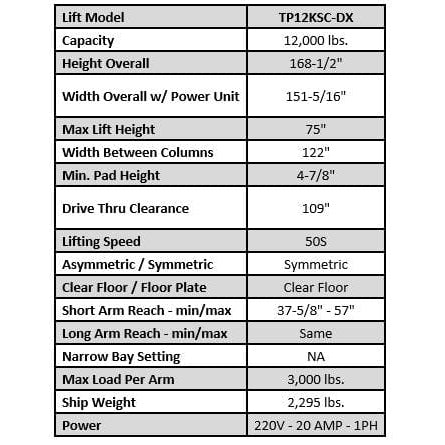

Specifications

Lift Model TP12KSC-DX
Capacity 12,000 lbs

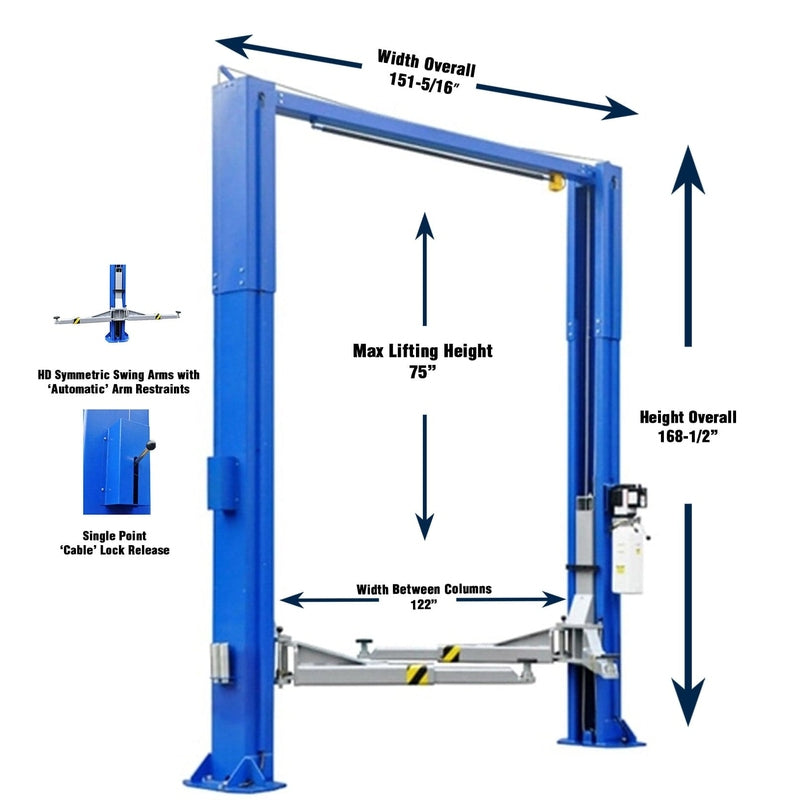

Height Overall 168-1/2"
Width Overall w/ Power Unit 151-6"
Max Lift Height 75"
Width Between Columns 122"
Min. Pad Height 4-7/8"
Drive Thru Clearance 109"
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach - min/max 37-5/8"-57"
Long Arm Reach - min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs
Ceiling Height Required 170"
Ship Weight 2,295 lbs
Power
220V - 20 AMP - 1 PH

Manual

iDEAL TP12KSC-DX Heavy Duty 2 Post Clear Floor Lift Manual
